layout: default title: Xtreme 9 Lives! :boom::metal::sunglasses:

To get some familiarity with Spring REST we are going to be creating a project called Xtreme9Lives.

Xtreme9Lives is a site where users can post and browse ads for Xtreme experiences and activities. While pushing the boundaries is a lifestyle choice we understand, our application needs to be simple and easy to use for our customers.

The front end team has already mocked an Angular front end for the application using test data. They have provided us with a list of requirements and routes they expect to be able to hit to retrieve the production data.

You have been tasked with building the backend of this application using Spring Boot and Spring REST.

A list of required endpoints (routes) will be provided below, along with their expected functionality.

Test each endpoint using Postman to ensure the data you are returning from your controller is accurate.

Resources

The front end team has provided you with a .zip file that contains the mocked Angular front end. Don't worry about how it works, you will just need to adhere to the contract they specify.

The database administrator has been kind enough to create a SQL schema, database, and some test data. You can download the .sql file here and execute it with mysql -u root -p < xtreme.sql.

Requirements

We need a functional REST API that will aggregate, create, and update data using a SQL database.

Our application is designed around 3 objects: * Category * Post * Comment

You will need to set up the entire schema and Entity relationships. However, for the Alpha product we only need basic CRUD operations on Post objects.

Functionality

  • Display all Posts at once
  • UI should show the Post title, category, and brand
  • Display a single Post that has been selected by a user
  • UI should display the selected Post's title, category, brand, cost, description, name, and email
  • Allow users to create new Posts for other users to view
  • required fields are title, name, email, description, price
  • Be able to edit or replace a Post that has already been created
  • Be able to delete Posts that are deemed inappropriate

Every route we create should be tested via Postman, as well as using web integration testing.

If all goes well, we expect the client will expand the feature set and ask us to add more functionality. (Spoiler: we will.)

Expected Routes

Return Type Route Functionality
List<Post> GET api/posts Gets all posts
Post GET api/posts/{id} Gets one post by id
Post POST api/posts Creates a new post
Post PUT api/posts/{id} Replaces an existing post by id
void DELETE api/posts/{id} Deletes an existing post by id

Steps

Workspace Setup

  1. Create a new STS workspace called Xtreme9Lives in ~/SD/Java/.
  2. Set workspace preferences:
    • Java | Compiler Compiler compliance Level: 1.8
    • Gradle: Specific Gradle version (current latest version)
    • Run/Debug | Console: UN-check Limit console output.
    • Apply and Close

Database Setup

  1. Download the provided xtreme.sql file and and move it to your Xtreme9Lives workspace. Use it to load the database into your local MySQL server: mysql -u root -p < xtreme.sql
  2. The database name is xtremedb.
  3. The user for this database is xtreme with a password of xtreme.
  4. Familiarize yourself with the provided schema and data in terminal.

JPA Project Setup

  1. Inside the Xtreme9Lives workspace create a new JPA Project called XtremeJPA.
  2. Add new source folders to the build path:
    • src/main/resources
    • src/test/java
    • src/test/resources
  3. Under JPA implementation, choose Disable Library Configuration
  4. Do NOT open the JPA perspective.
  5. Move the META-INF folder from src/main/java to src/main/resources.
Configure Gradle for the JPA Project
  1. Add Gradle Nature to the project.
  2. Open the Gradle Tasks view.
  3. Under the build setup task group, run the init task.
  4. Go to the Console view and press Return to answer the required questions until you get BUILD SUCCESSFUL.

  5. Refresh the Package Explorer view to see the new gradle files.

  6. Configure the build.gradle using a previous JPA project as an example. Make sure you do not use an MVC or Boot build.gradle, as these files differ.

Configure and Test the Persistence Unit
  1. From JPAVideoStore copy the log4j.properties file into the new project's src/main/resources/ and src/test/resources/.

  2. In persistence.xml, configure a Persistence Unit, making sure to use the appropriate JDBC login information.

  3. In a com.example.xtreme package, create and annotate a Java entity for the category table.

+-------+-------------+------+-----+---------+----------------+
| Field | Type        | Null | Key | Default | Extra          |
+-------+-------------+------+-----+---------+----------------+
| id    | int(11)     | NO   | PRI | NULL    | auto_increment |
| name  | varchar(50) | NO   | UNI | NULL    |                |
+-------+-------------+------+-----+---------+----------------+
1. In the same package but under src/test/java create an entity unit test. 1. Run the JUnit test to validate the persistence unit configuration.

Spring Boot REST Project Setup

  1. Create a new Spring Starter Project called XtremeREST.

  2. Follow the Spring Boot wizard and configure the project.

    • Give the project a base package of com.example.xtreme
    • Set Type to Gradle, Java Version to 8, and Packaging to War.
    • Select the Spring Web, Spring Data JPA, and MySQL Driver dependencies.

  3. In the REST project's settings.gradle file add:

    includeFlat 'XtremeJPA'

  4. In the REST project's build.gradle add the following to the dependencies:

implementation project(':XtremeJPA')
  1. Configure the connection and other properties in src/main/resources/application.properties:
#### PORT CONFIG ####
server.port=8082

#### MYSQL DATASOURCE ####
spring.datasource.url=jdbc:mysql://localhost:3306/xtremedb?useSSL=false&&useLegacyDatetimeCode=false&serverTimezone=US/Mountain
spring.datasource.username=xtreme
spring.datasource.password=xtreme
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver

  1. Download the provided frontend.zip file of the mocked front end. Unzip the file, unzip frontend.zip and move the directory into the XtremeREST/src/main/resources folder.

  2. Do a refresh of the Package Explorer view, then do a Gradle refresh.

  3. Launch XtremeRestApplication.java as a Spring Boot App and open it in the browser.

  4. You should be able to see the front end application.

Complete the JPA entities

  1. In the XtremeJPA project complete use the provided SQL schema to create Java entities for Category, Post, Comment.

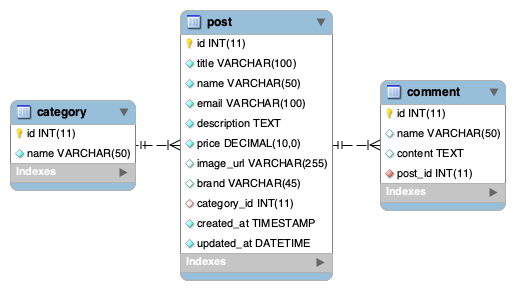

xtremedb ER diagram

  1. Start by just mapping and writing tests for each entity's scalar types, with successful unit tests for each separate entity.

  2. Then add the appropriate bi-directional relationships and test them.

    • A Post has one Category, a Category has many Posts.
    • A Comment has one Post, a Post has many Comments.

  3. In your Post entity we are going to add two annotations above the fields of type Date. @CreationTimestamp and @UpdateTimestamp instruct JPA to generate values for our insertedAt and updatedAt fields.

@Column(name="created_at")
@CreationTimestamp
private LocalDateTime createdAt;

@Column(name="updated_at")
@UpdateTimestamp
private LocalDateTime updatedAt;

Implement the REST API for Post

  1. We are now set up and ready to write our Controller routes and DAO business logic. To ensure we have our environment set up correctly lets write a ping/pong route before we start sprinting forward.

  2. Create a PostController class in a com.example.xtreme.controllers package.

  3. Annotate the class with @RestController and @RequestMapping("api")
  4. Write a route that returns the String "pong", mapped to ping.

  5. Launch the project and hit the route localhost:8080/api/ping using Postman.

  6. In a com.example.xtreme.data package, create a PostDAO Interface and PostDaoImpl implementing class.

  7. Annotate the Impl with @Transactional and @Service.
  8. Use @PersistenceContext to bring in a field of type EntityManager.

  9. Back in your PostController autowire in a field of type PostDAO.

  10. Start implementing the business logic for the required routes. Follow the recommendations below.

  11. Write the DAO logic for a CRUD operation before you write the corresponding Controller route.
  12. Don't assume your routes work, test each one using Postman and maybe even try to break them.
  13. Ensure that the response status code accurately represents what occurred in success and failure.
  14. Once a route is working and tested, open the application in a browser and test to see if the functionality has been integrated with the front end. You may need to restart the application before each attempt.

NOTE when implementing create functionality a Post has a NOT NULL relationship with a category. For now, hard code every created post to category 5. We will develop this functionality and allow a user to select a category in a later release.

Expected Routes

Return Type Route Functionality
List<Post> GET api/posts Gets all posts
Post GET api/posts/{id} Gets one post by id
Post POST api/posts Creates a new post
Post PUT api/posts/{id} Replaces an existing post by id
void DELETE api/posts/{id} Deletes an existing post by id
