Accessing Multiple Tables

SQL JOINs

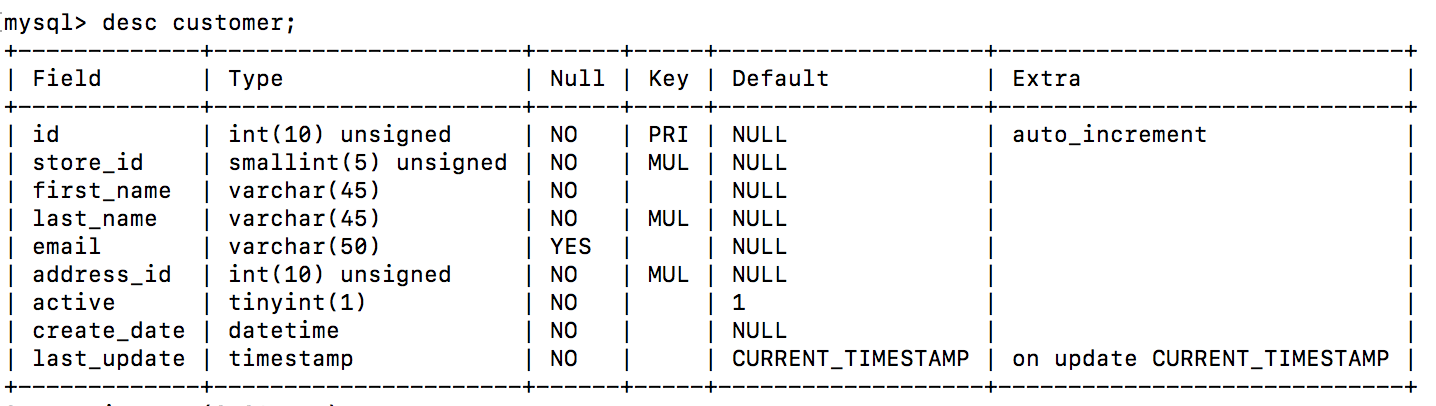

Looking at the Customer table we can see that we have multiple foreign keys present: address_id and store_id.

The presence of these foreign keys means there is a relationship between Customer and Address as well as Customer and Store.

For example we could JOIN Customer and Address as follows:

Select c.first_name, c.last_name, a.address, a.city, a.state_province
FROM Customer c JOIN Address a
ON c.address_id = a.id
WHERE c.id =1;

JPA Foreign Keys

Foreign key columns could be mapped the exact same way as we have handled any primitive data types in JPA, using the @Column annotation.

Again looking at our Customer table we can see that it has a column address_id of type int. This in turn would correspond to a field in the Customer class.

@Column(name="address_id")
private int addressId;

We can use this column to find the Address for a Customer.

Drill

Lets build this relationship. 1. In your Customer entity add a field addressId and annotate it properly. * Add the appropriate gets and sets. 1. Create a class CustomerRelationshipClient in com.example.jpavideostore.client. 1. In a main, find the Customer that has id 1. * Print out its toString as well as getAddressId. 1. Refactor your code and add a second em.find for an Address object using the value provided by getAddressId. 1. Print out the returned Address.

While this method properly retrieves a Customer and Address entity, it is inefficient. We are running two SELECT statements as opposed to a JOIN.

We are also not leveraging Object-Oriented principals. Instead of Customer having a field field of type int,

private int addressId;

we would expect it to have a field of type Address

private Address address;

This is what we will explore next.

---
