Forms

An HTML form provides a mechanism for accepting user input in a browser and, when activated, generating and sending a query request to the web server.

<form action="inventory.do" method="POST">
    <h2>Enter data into the form and examine it with Developer Tools:</h2>
    <label for="search">Search:</label> <input type="text" name="search">
    <br >
    <label for="comments">Comments:</label> <input type="text" name="comments">
    <br >
    <input type="submit" value="submit" >
</form>

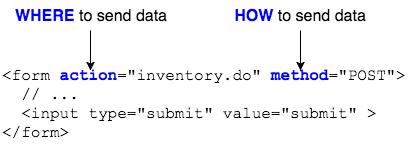

  • action - the location where the form will send data.

  • method - the type of submission: GET, POST.

action and method

Form Elements

Each form element has a name and a value. * An element can have multiple values. * The browser sends each element's name and value to the server when the form is activated (submitted). * The server passes these name=value pairs to the server-side program designated by the form's action.

Form Submission

An HTML form needs an element that will activate it, causing the browser to transmit the user's input to the server. * The most obvious and traditional example is a Submit button.

<input type='submit' value='Click Me'>
* A form's first Submit button is its default button. * Hitting Enter in the browser triggers the default button.

Activating the form causes the browser to: * Concatenate the form element names and current values into a properly encoded CGI query string.

  • Send the specified HTTP method request to the specified action URL:

  • GET: Append the query string to the URL, following a question mark ?.

  • POST: Send the query string as the request body.

Example POST and Response

POST /char.cgi HTTP/1.1
Host: example.com
Connection: keep-alive
Content-Length: 179
Cache-Control: max-age=0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/
webp,*/*;q=0.8
Origin: null
User-Agent: Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/40.0.2214.91 Safari/537.36
Content-Type: application/x-www-form-urlencoded
Accept-Encoding: gzip, deflate
Accept-Language: en-US,en;q=0.8

character_name=Glorb&character_type=Zombie&inclination=neutral&attitude=
nasty&power=Summon+vermin&power=Bad+Breath&catchphrase=GLURRGGGHH%21&pla
yer_level=1&create_character=Create

HTTP/1.1 200 OK
Connection: close
Content-type: text/plain
Content-length: 18

Character created.

Drill

  • Open a Chrome browser and enter the URL http://localhost:8080/WebData/form.html.
  • Open the Developer Toolbar and select the Network tab.
  • Submit the form and examine the request headers and body.

WebData/src/main/webapp/form.html

  • Change the form's method to GET.
  • Refresh the page and resubmit the form. What changed?
  • Change the form's method to get.
  • Refresh the page and resubmit the form. Did anything change?

(Solution: http://localhost:8080/WebData/solutions/formGET.html)
