LinkedList


layout: default title: LinkedList


Recall that ArrayList maintains an internal array.

  • + fast lookup.
  • - the array must grow as elements are added.
  • - elements must be shifted when elements are inserted or removed at an index.

ArrayList with inner array

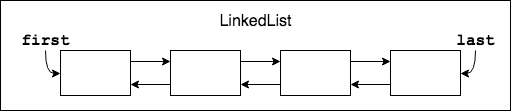

LinkedList implements List as a doubly-linked list.

ArrayList with inner array

  • The class does not maintain an internal array.
  • Each object added to the List is stored as a node, which has a reference ("link") to the next and previous node.
  • The object has a reference to its first and last nodes.

  • The List starts empty, and as objects are added, nodes are added and linked to the last node.

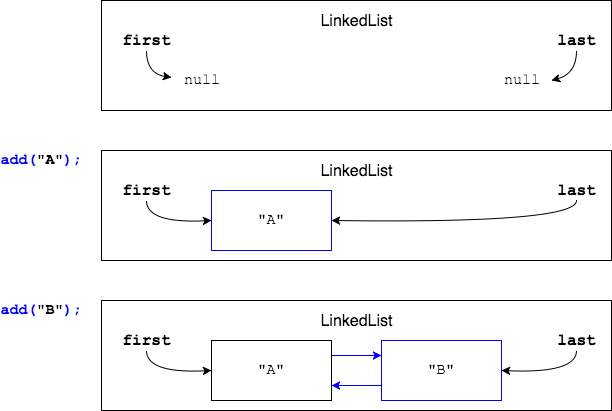

Adding to LinkedList

When to use LinkedList

LinkedLists are useful when an application needs to frequently insert elements into the beginning or the end of the list.

  • + fast inserting at beginning (head) or end (tail).
  • - Positional access is slower.
  • The class only has references to the head and tail, so it must start at one end and traverse node-to-node.

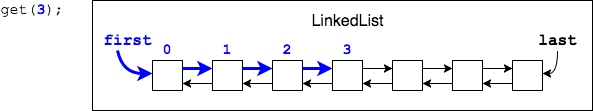

    Positional access is node to node

Drill

In this drill, you will run two classes which use different List implementation classes. ListInterface/com.example.listinterface.drills.LinkedListAdding

  • This class calculates the time to fill an ArrayList with Planet objects when repeatedly adding at position 0 and size() - 1. This causes a lot of element shifting and copying to new arrays.
  • Run the program, and note the time taken.
  • Change the ArrayList to a LinkedList, run, and note the difference in time.

ListInterface/com.example.listinterface.drills.LinkedListPositionalAccess

  • This class calculates the time to access an element in an ArrayList.
  • Run the program, and note the time taken.
  • Change the ArrayList to a LinkedList, and note the difference in time.
  • LinkedList should take longer because it has to start at the head or tail, then follow each reference to the previous or next node.
