Buckets

A HashMap object maintains an internal array called a hash table containing references to map entries (sometimes called nodes.)

  • A map entry has references to a key and its stored value, and can also link to another entry.

  • By default, the initial size of a HashMap's hash table array is 16.

Empty Hash Table

We call the slots in the hash table array buckets, because each can hold multiple map entries.

Choosing a Bucket

The modulus of the key's hash code by the size of the hash table array determines a map entry's bucket.

int bucketIndex = key.hashCode() % array.length;
  • Each string in this list of state abbreviations has a unique hash code; taking the hash code modulo 16 divides them into 16 buckets:
"AL": hashCode=2091, mod16=11  // Bucket 11
"AK": hashCode=2090, mod16=10  // Bucket 10
"AZ": hashCode=2105, mod16=9   // Bucket 9
"AR": hashCode=2097, mod16=1   // Bucket 1
"CA": hashCode=2142, mod16=14
"CO": hashCode=2156, mod16=12
"CT": hashCode=2161, mod16=1
"DE": hashCode=2177, mod16=1
...
"WA": hashCode=2762, mod16=10
"WV": hashCode=2783, mod16=15
"WI": hashCode=2770, mod16=2
"WY": hashCode=2786, mod16=2

When a new key/value pair is put into a HashMap, the map: 1. Calls the key's hashCode. 2. Creates a node object with references to the key and the value, as well as a copy of the key's hash code (so it doesn't have to call its hashCode again.) 3. Takes the modulus of the hash code by the hash table array's size to determine the array index - which bucket - the node belongs in. 4. Assigns a reference to the new node to the bucket: 1. If the bucket is empty, it assigns a reference to the node object into that array element. 2. If there are already any entries in that element, it adds a reference to the new node to the last entry in the bucket.

Practice Exercise

Internally, HashMap actually does some arithmetic manipulation to determine the hash value for each key, to help ensure even distribution.

Map<String, USState> states = new HashMap<>();
USState state = new USState("AL", "Alabama", "Birmingham", "Dec 14 1819", 4863300);
states.put("AL", state);

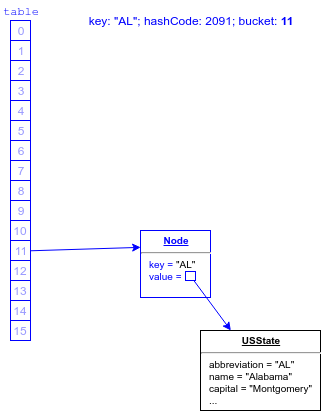

HashMap put

states.put("AR", new USState("AR","Arkansas","Little Rock","Jun 15 1836",2988248));

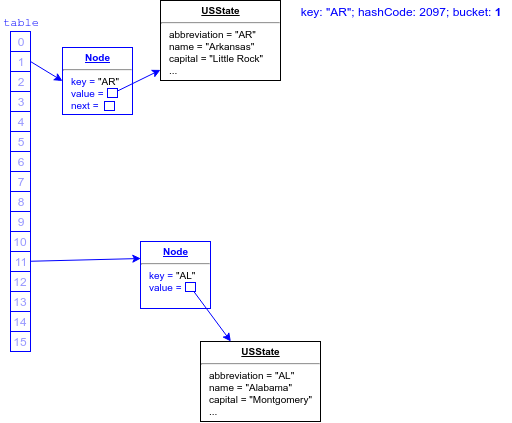

First Hash Bucket Entry

When we get an entry out of the map, the HashMap computes the hash code and thus the bucket of the key we provide, and goes directly to that array index to retrieve the entry.

USState al = states.get("AL");

No matter how big the hash table, this computation and retrieval takes the same amount of time.

  • The same is true for adding or removing a map entry.

  • In contrast, to search for a particular object in a List takes longer as the list size increases.
